Cat 6 S-FTP netkapall – 57197

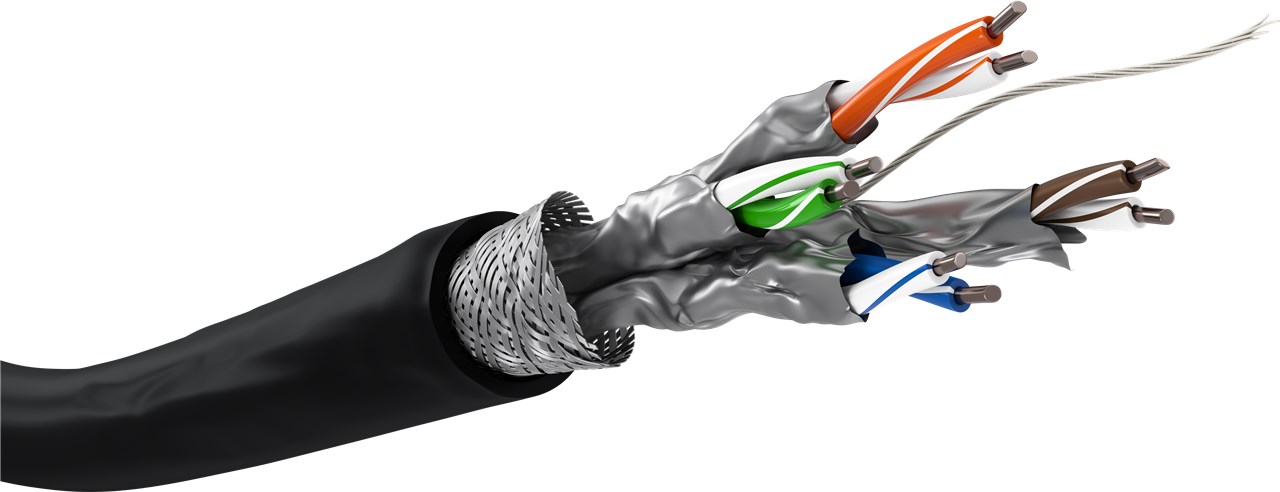

Lýsing Cat6 S-FTP (PiMF) kapall. Bara seldur í 100 metra rúllum, AWG 23/1, PE, litur svartur Unterminated patch cable for installation with LSA connection technology. No approval for permanent installation in buildings Flexible data and installation cable for outdoor assembly with a maximum transmission length of 40 m Double-layer polyethylene (PE) jacket protects the network cable outdoors and makes it extremely weather-resistant. The outdoor Ethernet cable is ideal for use in building facades and surveillance cameras. S/FTP overall shield: aluminium foil shield for individual wire pairs (PiMF) and aluminium braid shield for the cable sheath High-quality copper-clad aluminium wire (CCA) guarantees an excellent, powerful network connection. Complies with the Construction Products Regulation (CPR) and Fca fire protection class Technical Details Cable Specification  CAT 6 Cable type  outdoor cable Shielding class  S/FTP (PiMF) Number of shieldings  2 x Type 1, shielding  foil (alu) PiMF Type 2, shielding  braid (alu) overall shield AWG  23/1 solid Inner conductor material  CCA (copper-clad aluminium) Material cable sheath  PE Cable sheath diameter (approx.)  6.3 mm Fire class (CPR)  Fca Cable length  100 m Signal transmission  usable up to cable length 40 m max. bandwidth  250 MHz Impedance  100 Ω General Color black Operating temperature from -20 °C Operating temperature up to 75 °C Packaging type Cable Reel-spool Dimensions / Weight Consumption Unit  100 m
